air metro550g and 460 g vlan configiration Reply

MUSTAFA BACAK

Level 1

air metro550g and 460 g vlan configiration
132 4 2025-6-17 15:51:32
Original
hello;

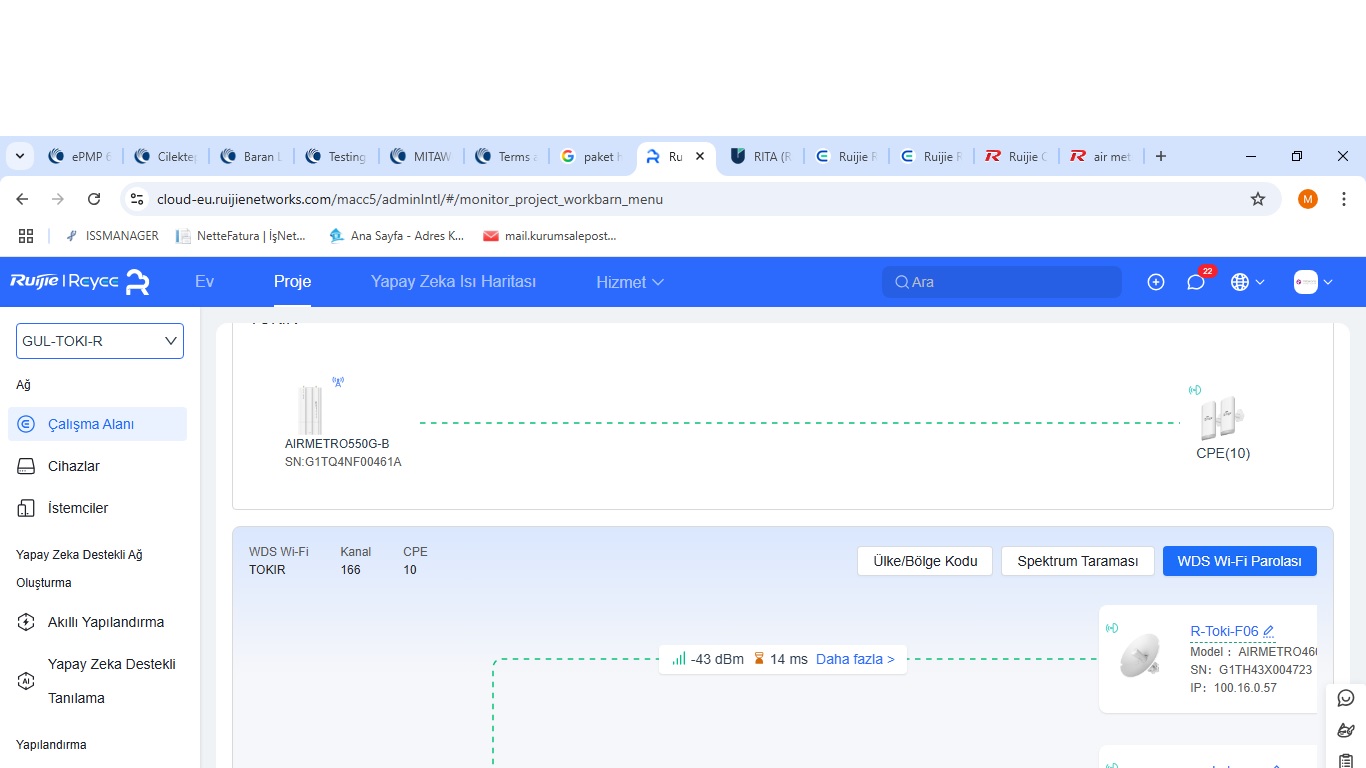

I installed the system as air metro 550g base station and airmetro 460g cpe, I added 12 cpe to the 550g antenna.
The signal decibels are 43 dbm as standard in all of them. But the cpe's are constantly disconnecting and reconnecting. Also, I cannot configure VLAN to the cpe antennas. Can you provide support regarding this?
Airmetro Series

Wireless-Bridge
0 2025-6-17 17:20:59 View all replies
Dear sir,
Are there any obstacles between AirMetro?
Please also check whether the channel used by the device hits the radar channel (DFS). After hitting the radar channel, the device will automatically avoid and switch to a non-radar channel, causing the device to be disconnected.
Regarding the VLAN on AirMetro, unfortunately AirMetro does not support VLAN configuration, but it supports VLAN transparent transmission, which means it can transmit VLAN between sites.
Best regards,
Lex

0 2025-6-20 00:54:48 View all replies
GTAC-Lex replied at 2025-6-17 17:20
Dear sir,
Are there any obstacles between AirMetro?
Please also check whether the channel used by th ...

hello ;

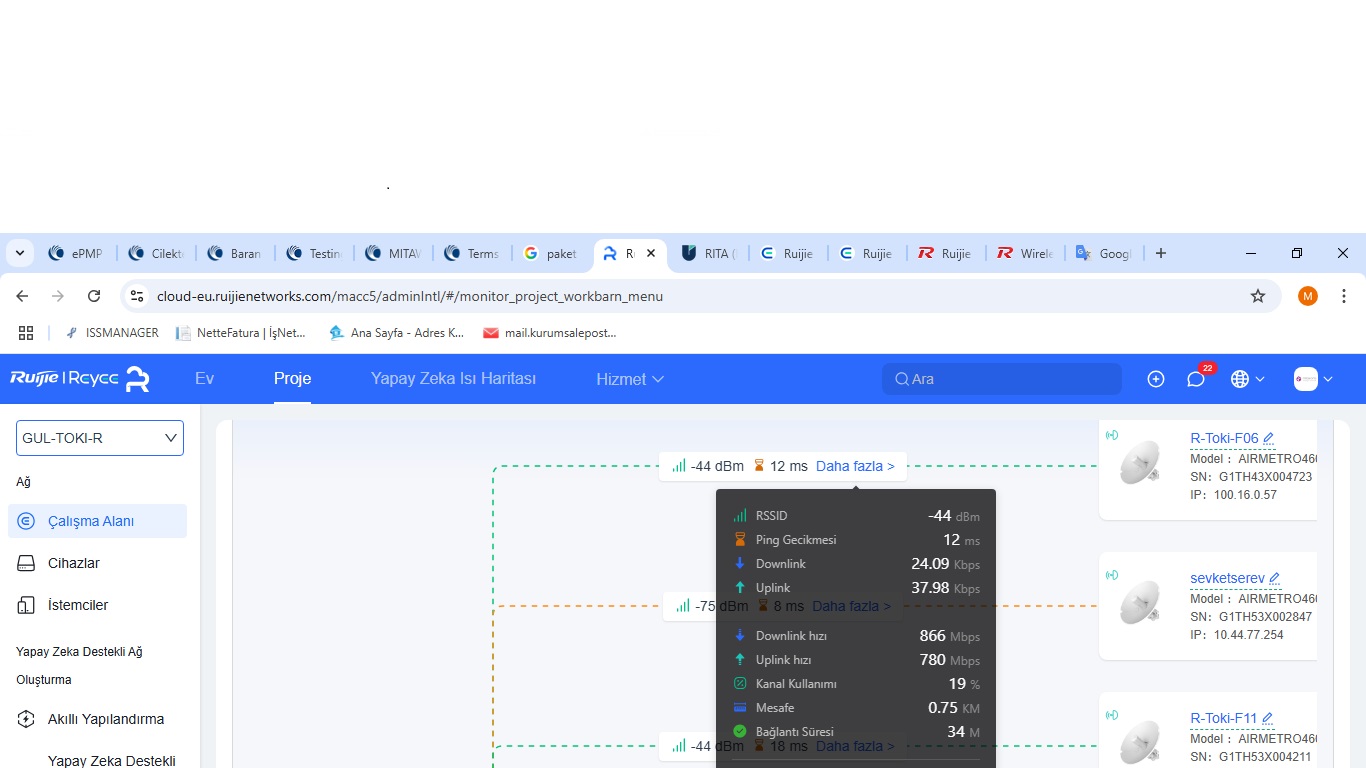

There is no physical barrier between the devices, data dbm is almost 45 dbi. I started experiencing this problem when the number of cpe started to increase. There are currently 12 cpe. I did not experience these problems when there were 5-6 cpe. The 550 G datasheet also states that it supports 32 cpe, but I think we will not be able to reach this number.

The lack of VLAN is a big deficiency of this antenna. We provide Wisp service. I cannot imagine a network without VLAN.

0 2025-6-20 01:08:29 View all replies
MUSTAFA BACAK replied at 2025-6-20 00:54
hello ;

There is no physical barrier between the devices, data dbm is almost 45 dbi. I started ex ...



dfs çakışması yok. Frekans taraması ve spektrum taraması ile frekansı belirledim. Frekansı da değiştirdim ama sorun çözülmedi.

0 2025-6-20 01:12:16 View all replies
MUSTAFA BACAK replied at 2025-6-20 01:08
dfs çakışması yok. Frekans taraması ve spektrum taraması ile frekansı belirledim. Frekans ...
