Device cannot go online on Ruijie Cloud

60997 15 2018-8-13 19:52:23 Subscribe

Original

1. Check Network Connectivity

1) Verify the connectivity between Ruijie device and Ruijie Cloud.

ping devicereg.ruijienetworks.com on device CLI.

2) Whether your device's IP address, gateway, DNS server are configured

Ruijie(config)#int bvi 1

Ruijie(config-if)#ip address 192.168.1.1 255.255.255.0 //configure IP

Ruijie(config-if)#end

Ruijie(config)#ip route 0.0.0.0 0.0.0.0 192.168.1.254

//configure gateway

Ruijie(config)#ip name-server 8.8.8.8 //configure DNS

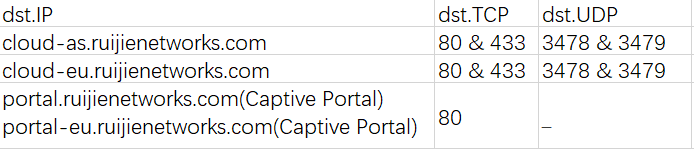

3) Following ports are used for Ruijie Cloud management. Ensure these ports are available and the data stream is permitted.

Note: AP and SMB switch have default CWMP setting which allows devices can look for Ruijie Cloud automatically. But for enterprise switch(RG-S29 series), It needs to configure CWMP URL on CLI manually.

Ruijie#configure ter

Ruijie(config)#cwmp

Ruijie(config-cwmp)#acs url http://devicereg.ruijienetworks.com/service/tr069servlet

Ruijie(config-cwmp)#end

Ruijie#wr

2. Check Device Running Mode(Wireless only)

Verify whether the AP is running in FAT mode, if the device is working in FAT mode, it needs to switch AP into macc mode on WEB or CLI for Ruijie Cloud registration. the command are following

Ruijie#ap-mode macc

Note: By default, AP is running in FIT Mode and will convert MACC mode automatically once it has Internet access.

3. Check Ruijie Cloud Hosting(Asia or Europe)

1) In order to provide smooth access and reduce Internet latency for users in Ruijie Cloud solution. There is 2 Ruijie Cloud hosting installed for global service. The dynamic hosting selection for regions or countries shows as below:

2) As 2 hosting databases are isolated, if the serial number you input on and the device DNS resolution is not the same hosting, the device will not show online. First, verify which hosting you are accessing in the browser. Simply login your Ruijie Cloud account, and check the URL link.Cloud-as represents Asia cloud and cloud-eu is Europe Cloud. Then, login device's cli and execute ping cloud.ruijienetworks.com and check which IP address is resolved.(Asia-35.197.150.240,Europe-35.234.108.108). Please confirm the cloud hosting you are accessing is the same as the one device registered.

4. Check Device Firmware

Whether the device is running the latest firmware as Ruijie Cloud recommended, if the firmware version is too old, it may not be compatible with Ruijie Cloud. User can log in device's web or cli and upgrade to latest firmware version. Please refer Ruijie Cloud Supported Model and Recommended Firmware Version:

https://www.ruijienetworks.com/support/documents/slide_73633

5. Check Serial Number

Whether the device's serial number is matched with the one displayed on Ruijie Cloud. The serial number can be found on device back panel or exec "show version" on CLI.

6. Check CWMP configuration

The following is right cwmp configuration:

show cwmp configuration

CWMP status : enable

ACS URL :

http://devicereg.ruijienetworks.com/service/tr069servlet (DYNAMIC)

CPE URL : http://172.29.60.63:7547/ (DYNAMIC)

If the configuration is wrong, you can use the command following to

change.

AP#config ter

AP(config)#cwmp

AP(config-cwmp)#acs url http://devicereg.ruijienetworks.com/service/tr069servlet
